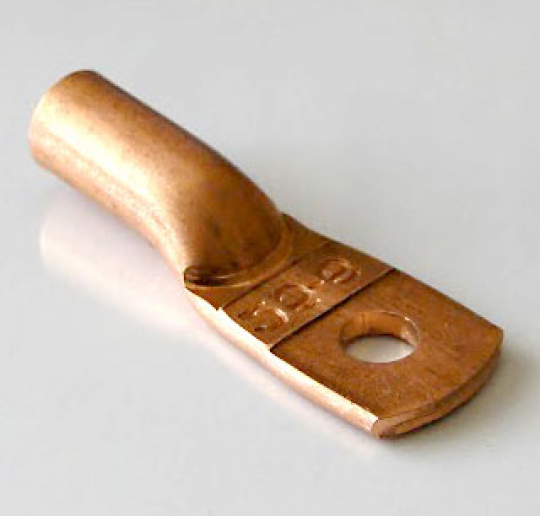

Предназначены для оконцевания опрессовкой медных кабелей и проводов. Материал изготовления электротехническая медь марки М2. Покрытие: без покрытия (климатическое исполнение: «УХЛЗ»). Рабочее напряжение: до 35 кВ
Медные кабельные наконечники изготавливаются в соответствии с требованиями ГОСТ 7386-80.
| Наименование | Сечение (мм²) | Винт | Размеры (мм) | |||||
|---|---|---|---|---|---|---|---|---|
| D | B | L | d | d1 | ||||
|
ТМ 2.5–4–2.6 |
2,5 |
2,5 |
M 4 |
4,3 |
8,0 |
28,0 |
5,0 |
2,6 |
|
ТМ 2.5–5–2.6 |
2,5 |
2,5 |
M 5 |
5,3 |
10,0 |
28,0 |
5,0 |
2,6 |
|
ТМ 2.5–6–2.6 |
2,5 |
2,5 |
M 6 |
6,4 |
12,0 |
30,0 |
5,0 |
2,6 |
|
ТМ 4–5–3 |
4 |
4 |
M 5 |
5,3 |
10,0 |
32,0 |
5,0 |
3,0 |
|
ТМ 4–6–3 |
4 |
4 |
M 6 |
6,4 |
12,0 |
32,0 |
5,0 |
3,0 |
|
ТМ 6–5–4 |
6 |
6 |
M 5 |
5,3 |
10,0 |
32,0 |
6,0 |
4,0 |
|
ТМ 6–6–4 |
6 |
6 |
M 6 |
6,4 |
12,0 |
32,0 |
6,0 |
4,0 |
|
ТМ 10–5–5 |
10 |
10 |
М 5 |
5,3 |
11,0 |
40,0 |
8,0 |
5,0 |
|
ТМ 10–6–5 |
10 |
10 |
М 6 |
6,4 |
14,0 |
40,0 |
8,0 |
5,0 |
|
ТМ 10–8–5 |
10 |
10 |
М 8 |
8,4 |
16,0 |
40,0 |
8,0 |
5,0 |
|
ТМ 16–6–6 |
16 |
16 |
М 6 |
6,4 |
14,0 |
40,0 |
9,0 |
6,0 |
|
ТМ 16–8–6 |
16 |
16 |
М 8 |
8,4 |
16,0 |
40,0 |
9,0 |
6,0 |
|
ТМ 25–6–7 |
25 |
25 |
М 6 |
6,4 |
15,0 |
45,0 |
10,0 |
7,0 |
|
ТМ 25–8–7 |
25 |
25 |
М 8 |
8,4 |
16,0 |
45,0 |
10,0 |
7,0 |
|
ТМ 35–8–9 |
35 |
35 |
М 8 |
8,4 |
18,0 |
60,0 |
12,0 |
9,0 |
|
ТМ 35–10–9 |
35 |
35 |
М 10 |
10,5 |
20,0 |
60,0 |
12,0 |
9,0 |
|
ТМ 35–12–9 |
35 |
35 |
М 12 |
13,0 |
22,0 |
60,0 |
12,0 |
9,0 |
|
ТМ 50–8–11 |
70 |
50 |
М 8 |
8,4 |
20,0 |
63,0 |
14,0 |
11,0 |
|
ТМ 50–10–11 |
70 |
50 |
М 10 |
10,5 |
22,0 |
63,0 |
14,0 |
11,0 |
|
ТМ 50–12–11 |
70 |
50 |
М 12 |
13,0 |
24,0 |
63,0 |
14,0 |
11,0 |
|
ТМ 70–10–13 |
95 |
70 |
М 10 |
10,5 |
24,0 |
65,0 |
16,0 |
13,0 |
|
ТМ 70–12–13 |
95 |
70 |
М 12 |
13,0 |
24,0 |
65,0 |
16,0 |
13,0 |
|
ТМ 95–10–15 |
120 |
95 |
М 10 |
10,5 |
28,0 |
75,0 |
19,0 |
15,0 |
|
ТМ 95–12–15 |
120 |
95 |
М 12 |
13,0 |
28,0 |
75,0 |
19,0 |
15,0 |
|
ТМ 120–12–17 |
150 |
120 |
М 12 |
13,0 |
34,0 |
81,0 |
22,0 |
17,0 |
|
ТМ 120–16–17 |
150 |
120 |
М 16 |
17,0 |
34,0 |
81,0 |
22,0 |
17,0 |
|
ТМ 150–12–19 |
185 |
150 |
М 12 |
13,0 |
36,0 |
90,0 |
25,0 |
19,0 |
|
ТМ 150–16–19 |
185 |
150 |
М 16 |
17,0 |
36,0 |
90,0 |
25,0 |
19,0 |
|
ТМ 185–16–21 |
240 |
185 |
М 16 |
17,0 |
40,0 |
95,0 |
27,0 |
21,0 |
|
ТМ 185–20–21 |
240 |
185 |
М 20 |
21,0 |
40,0 |
95,0 |
27,0 |
21,0 |
|
ТМ 240–16–24 |
300 |
240 |
М 16 |
17,0 |
48,0 |
105,0 |
32,0 |
24,0 |
|
ТМ 240–20–24 |
300 |
240 |
М 20 |
21,0 |
48,0 |
105,0 |
32,0 |
24,0 |
|
ТМ 300-16-27 |
400 |
300 |
М 16 |
17,0 |
50,0 |
105,0 |
34,0 |
27,0 |
|
ТМ 300-20-27 |
400 |
300 |
М 20 |
21,0 |
50,0 |
105,0 |
34,0 |
27,0 |
